Compressive Strength

Compressive Strength testers are used to determine the compressive strength development, gel strength development and elastic moduli of oil well cement under simulated downhole conditions.
  • Model 4265HT Ultrasonic Cement Analyzer
    Model 4265HT Ultrasonic Cement Analyzer

    Model 4265HT (600ºF / 316ºC; 20,000 psi / 138 MPa)
    Testing the strength of standard cement cubes only provides information about cured strength. To accurately and effectively schedule a cementing job with a minimum WOC time, you need to determine how a slurry develops strength over time during curing. The Model 4265HT Ultrasonic Cement Analyzer (UCA) provides a determination of the strength development of a cement sample while it is being cured under very high downhole temperature and pressure conditions.

    Keep Reading
  • Model 4265 Ultrasonic Cement Analyzer
    Model 4265 Ultrasonic Cement Analyzer

    Model 4265 (400ºF / 204ºC; 20,000 psi / 140 MPa)
    Testing the strength of standard cement cubes only provides information about cured strength. To accurately and effectively schedule a cementing job with a minimum WOC time, you need to determine how a slurry develops strength over time during curing. The Model 4265 Ultrasonic Cement Analyzer (UCA) provides a determination of the strength development of a cement sample while it is being cured under downhole temperature and pressure conditions.

    Keep Reading
  • Model 4262 Twin Cell Ultrasonic Cement Analyzer
    Model 4262 Twin Cell Ultrasonic Cement Analyzer

    Model 4262 Twin Cell UCA (400ºF / 204ºC; 5,000 psi / 35 MPa)
    The Model 4262 Twin Cell UCA is the workhorse for compressive strength determination in busy laboratories. With two cells that can operate independently of each other, the Model 4262 is a must have for laboratories conducting standard oil well cement testing.

    Keep Reading

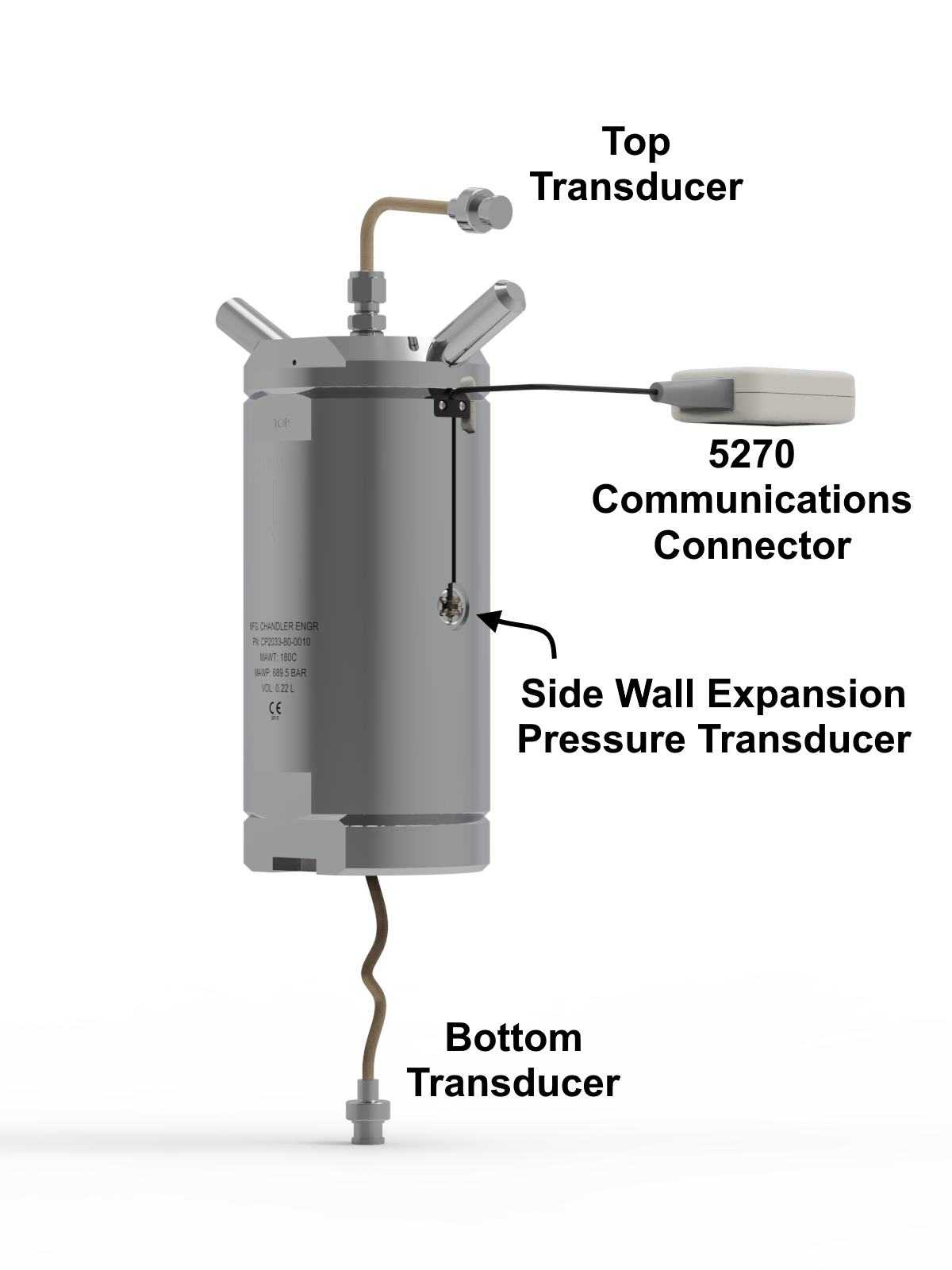

  • Model 4268 ES Cement Expansion / Shrinkage Cell
    Model 4268 ES Cement Expansion / Shrinkage Cell

    Model 4268 ES (400ºF / 204ºC; 10,000 psi / 69 MPa)
    The expansion or shrinkage of oil well cement during curing can positively or negatively impact the integrity of a competed well. The Model 4268ES Cement Expansion / Shrinkage Cell is an option to a Model 5265 Static Gel Strength Analyzer (SGSA), Model 4265 Ultrasonic Cement Analyzer (UCA) or Model 4265H UCA. When combined with a precision pressure controller, the system continuously measures the expansion or shrinkage of a cement sample under high temperature and high-pressure conditions.

    Keep Reading
  • Model 4268-E Cement Expansion Cell

    Model 4268 ES (400ºF / 204ºC; 10,000 psi / 69 MPa)
    The expansion or shrinkage of oil well cement during curing can positively or negatively impact the integrity of a competed well. The Model 4268ES Cement Expansion / Shrinkage Cell is an option to a Model 5265 Static Gel Strength Analyzer (SGSA), Model 4265 Ultrasonic Cement Analyzer (UCA) or Model 4265H UCA. When combined with a precision pressure controller, the system continuously measures the expansion or shrinkage of a cement sample under high temperature and high-pressure conditions.

    Keep Reading
  • Model 4268 ES Cement Expansion / Shrinkage Cell
    Model 4268-S Cement Shrinkage Cell

    Model 4268 ES (400ºF / 204ºC; 10,000 psi / 69 MPa)
    The expansion or shrinkage of oil well cement during curing can positively or negatively impact the integrity of a competed well. The Model 4268ES Cement Expansion / Shrinkage Cell is an option to a Model 5265 Static Gel Strength Analyzer (SGSA), Model 4265 Ultrasonic Cement Analyzer (UCA) or Model 4265H UCA. When combined with a precision pressure controller, the system continuously measures the expansion or shrinkage of a cement sample under high temperature and high-pressure conditions.

    Keep Reading
  • Model 4207D Compressive Strength Tester
    Model 4207D Compressive Strength Tester

    The Model 4207D Compressive Strength Tester is an automatic, digitally-controlled, hydraulic press (Max Load: 50,000 lbf / 222 kN). It is designed to test the compressive strength of standard two-inch cement cubes in exact compliance with API Spec 10A. The unit is used in research and field laboratories involved in quality assurance, and strength testing of cement blends.

    Keep Reading
  • Pressurized Curing Chambers
    Pressurized Curing Chambers

    Chandler Engineering offers several pressurized curing chambers that are specifically designed to cure standard two-inch cement cube samples for compressive strength testing in accordance with API and ISO standards for oilfield cements. The curing chambers cover a wide range of operational temperatures and pressures to simulate a wide variety of downhole conditions during the curing process.
