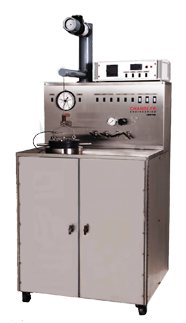

Model 5617 Corrosion Test Apparatus

Model 5617 Corrosion Test Apparatus
Test Corrosivity at High Pressure and High Temperature
Throughout the Oil & Gas Industry, the corrosivity of fluids and the effectiveness of corrosion inhibitors are critical to keeping operations reliable, safe and cost-effective. The Model 5617 Corrosion Test Apparatus is designed to test the reaction rate of corrosive liquids on metals that are subjected to high pressure and high temperature (HPHT) under dynamic conditions.

Simultaneously Test up to Twenty Samples
The Model 5617 is designed to help engineers maximize their testing productivity and optimize test repeatability. The chamber of the instrument can hold up to twenty glass sample bottles with corrosion-resistant caps during a single test. Each bottle may contain a different metal coupon and sample fluid if desired. Corrosion rates are determined by weight loss of each coupon. Alternatively, the instrument can be ordered to hold larger sample bottles.

User-Controlled Test Conditions and Sample Agitation
The test cylinder’s pressure is easily set. During a test, the pressure control gauge controls a pump and release valve to automatically maintain the preset pressure. The automatic temperature control can regulate the temperature heat-up rate which has a maximum of 5.4°F/ 3°C per minute.

Enhanced Safety and Productivity
Enhanced user safety in the Model 5617 begins with a remote control panel. This control panel enables the user to monitor and control the instrument’s pressure and temperature from a safe distance. The pressurization system safely pressurizes and depressurizes the test cylinder. The system includes user-adjustable upper and lower pressure set-points which prevent over and under- pressure conditions during a test. Pressure and temperature can be automatically tracked via an optional Model 5270 Data Acquisition and Control System. The instrument is also designed to minimize the cool-down and clean-up times between tests.
  • Specifications +

    Simultaneously test up to twenty samples
    • Maximum test pressure of 10,000 psi / 69 MPa
    • Maximum test temperature of 500°F / 260°C
    • Remote control panel for enhanced user-safety
    • Adjustable sample agitation angles and rates
    • Cooling capabilities
    • Compatible with the Model 5270 Data Acquisition and Control System

    Specimen Capacity:
    20 - 4 fl. oz. / 50 mL sample bottles
    8 - 8 fl. oz. / 100 mL sample bottles optional

    Maximum Pressure: 10,000 psi / 69 MPa
    Maximum Temperature: 500°F / 260°C
    Maximum Temperature Rise: 5.4°F / 3°C per minute

    Agitation Angles: 40°, 60°, or 80°
    Agitation Rates: 35, 60, or 100 cycles/minute

    Physical Dimensions:
    Instrument Size (H x W x D):
    67 in. x 39 in. x 33 in. / 170 x 99 x 84 cm
    Weight: 2,200 lb / 998 kg

    Remote Control Console:
    Maximum Separation Distance
    50 ft / 15.25 m
    Size (H x W x D)
    10 in. x 20 in. x 20 in. / 25 x 50 x 50 cm

    Weight: 25 lb / 11 kg

    Operating temperature
    32° to 105°F / 0 to 40°C

    Operating Humidity:
    0 to 95% non-condensing

    230 VAC ± 15%; 50/60 Hz ± 10%; 10 kVA
    Compressed air: 100 to 130 psi / 690 to 900 kPa; intermittent flow
    Cooling water: 20 to 80 psi / 140 to 550 kPa
